RC Plane Wiring Diagram Guide: How to Wire Your Electronics from Scratch

Disclosure: Some links in this article are affiliate links. We may earn a commission on qualifying purchases at no extra cost to you.

Open any generic page that ranks for "RC plane wiring diagram" and you'll find the same problem: a wall of text promising a comprehensive schematic, and not a single actual diagram. No distinction between a 400g foam trainer and a giant-scale warbird, no real hierarchy of what happens if you get it wrong. That gap is exactly where most first-time builders get stuck — staring at an ESC with a wall of red and black wires, a receiver with more slots than they expected, and a LiPo battery with two different connectors on it, wondering what plugs into what.

Wiring an RC plane's electronics isn't complicated once you understand the four blocks involved — battery, ESC, motor, receiver, servos — and the one rule that matters more than any diagram: the order you connect them in. Get that order wrong, or get the polarity wrong, and you're not looking at a minor fix. You're looking at a dead ESC, and possibly a dead motor and receiver with it.

This guide walks through the wiring itself, block by block, with the exact sequence the community has settled on after years of fried electronics, plus the sizing differences between a park flyer, a sport warbird, and a giant-scale build. If you're still choosing individual parts, our ESC guide, motors guide, and servos guide cover selection in depth — this one is strictly about getting them talking to each other safely.

What You'll Need

• A brushless motor, ESC, receiver, servos, and LiPo battery sized for your airframe (see the sizing table below if you haven't picked parts yet)
• A soldering iron and rosin-core solder (for connectors that don't come pre-installed)
• Heat-shrink tubing and a lighter or heat gun
• Wire strippers and a small hobby knife
• A multimeter (to confirm polarity before anything gets connected, not after)
• A servo tester (cheap, and it will save you from plugging an untested servo straight into a receiver)
• A paint pen or permanent marker, for marking positive/negative leads
• A fireproof LiPo charging bag

None of this needs to be expensive. A basic servo tester runs a few dollars and pays for itself the first time it catches a miswired servo before it ever sees a control horn.

Before You Start — What a "Wiring Diagram" Actually Covers

There's no single universal wiring diagram for RC planes, and that's the honest reason generic pages struggle to show you one. What you're really wiring is four connections that repeat on every fixed-wing electric setup, regardless of size:

LiPo Battery (XT60/XT90/Deans)
        |
        v
   [ ESC ] <---- 3 phase wires ----> [ Brushless Motor ]
        |
   BEC lead (signal + 5-6V power + ground)
        |
        v
[ Receiver — Throttle Channel ]
        |
        +--- CH1: Aileron servo(s)
        +--- CH2: Elevator servo
        +--- CH4: Rudder servo
        +--- CH5/6: Flaps, retracts, lights (if equipped)

The battery powers the ESC directly through two heavy wires. The ESC drives the motor through three phase wires, and separately feeds the receiver a regulated 5-6V signal through its BEC lead, which plugs into the throttle channel. From there, every servo runs its own three-wire lead into its assigned channel. That's the whole system. The variables are which connectors you use, whether your ESC has a BEC at all, and how many servos you're running — not the underlying structure.

Before you touch a soldering iron, propellers off, always. Every step below assumes there is no prop on the shaft until final bench testing is complete.

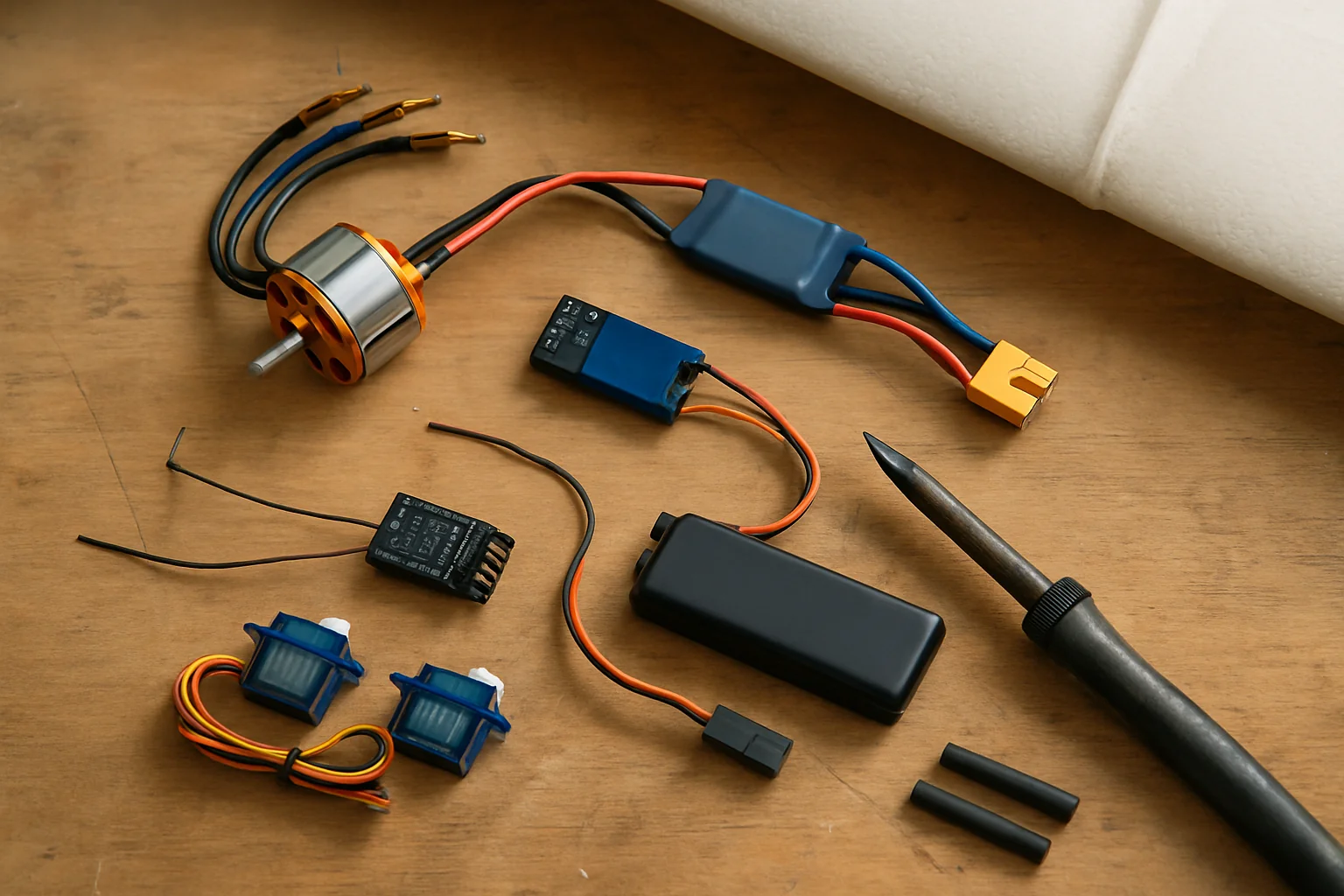

Step 1 — Identify Your Components and Their Wires

Lay everything out before connecting anything. On a typical brushless ESC, you'll find three wire groups:

• Two battery wires (heavier gauge, red positive / black negative), usually bare or pre-terminated in a bullet connector, ending in whatever connector the manufacturer chose — often XT60 today.
• Three phase wires to the motor, usually identical in color, terminated in 3.5mm bullet connectors. Order between these three doesn't matter for a first connection.
• One thin servo-style lead (signal, power, ground) that plugs into the receiver's throttle channel. This is also how the receiver gets powered, if your ESC has a built-in BEC.

A budget standalone option like the 30A ESC with a built-in 5V/6V BEC covers most 2-4S park flyers and trainers without needing a separate receiver battery. If your ESC is labeled "OPTO," it has no BEC — you'll need a separate UBEC or receiver pack, which we cover in the sizing section below.

Step 2 — Wire the Motor to the ESC

This is the simplest connection and the easiest one to get "wrong" in a way that doesn't damage anything. Connect the three ESC phase wires to the three motor phase wires using their bullet connectors — any combination works, the motor will spin either way.

The direction it spins is the only thing that changes based on which wires you paired up. If the prop spins backward once everything is powered, swap any two of the three phase wire connections — never try to fix rotation direction through the transmitter or ESC programming. It's a five-second physical fix, and it's the one the whole community lands on, from RCGroups threads to manufacturer manuals.

A mid-size trainer motor like the FLASH HOBBY D2826 1000KV outrunner is a reasonable reference point here — rated for 2-3S, a 10-11 inch prop, and paired with a 30-40A ESC, which lines up with the general rule of sizing your ESC 10-20% above the motor's max rated current.

Step 3 — Choose and Solder Your Battery Connector

If your ESC and battery already share the same connector, skip to Step 4. If not, here's where soldering actually happens.

XT60 has become the de facto community standard for small-to-mid electric planes — rated around 65A continuous, gold-plated spring contacts, keyed so it can't be plugged in backward, and easy to solder without specialized tools. XT90 steps up to roughly 120A for larger 4S+ setups, and EC3/EC5 connectors are common on ready-made kits. Deans (T-plug) connectors show up on older gear — they handle current fine but are harder to solder cleanly and worth avoiding for a first build.

If you need connectors, a 10-pair XT60 set with heat-shrink included is enough for several builds and spares. When soldering, tin both the wire and the connector cup first, then join them flat rather than at an angle — it keeps the plastic housing from warping under heat.

Never use bare bullet connectors for the battery side. Bullets have no polarity protection, and that's specifically what makes a battery-to-ESC mismatch so dangerous — there's nothing physically stopping you from plugging it in reversed.

Mark your positive and negative leads with a paint pen the moment you finish soldering. It sounds trivial, but reversed battery polarity is the single most common cause of a dead ESC — an instant, unrecoverable failure that's not covered under warranty on any brand. A few cents of paint is genuinely cheaper than a replacement ESC and motor.

For the battery itself, a 3S 2200mAh LiPo with a factory XT60 is a common trainer-size reference — our LiPo battery guide covers sizing and safe charging in more depth.

Step 4 — Connect the ESC to the Receiver

Once the motor and battery connectors are sorted, plug the ESC's thin servo-style lead into your receiver's throttle channel — typically CH3 on Futaba-pattern radios, CH2 on Spektrum. This single connection does two jobs at once: it sends the throttle signal to the ESC, and if your ESC has a built-in BEC, it also feeds regulated power back to the entire receiver bus.

That's worth repeating, because it's a common point of confusion: you do not need a separate receiver battery on most park flyers and trainers. The ESC's BEC handles it. A separate receiver pack or UBEC only becomes necessary when your ESC is OPTO-only, or when you're running enough servos (flaps, retracts, lights, dual ailerons) that a single BEC can't reliably supply them all — which is standard on giant-scale builds, covered in the sizing table below.

A 6-channel receiver like the Flysky FS-iA6B is a common budget pairing for this kind of build, with dual antennas and PWM outputs for each channel. For a deeper look at receiver selection and binding, see our transmitter and receiver guide.

Step 5 — Wire the Servos to Their Channels

With the throttle channel handled, run each servo lead into its assigned channel: ailerons on CH1, elevator on CH2, rudder on CH4, with CH5/6 free for flaps, retracts, or lights on more complex builds.

Every servo connector follows the same layout: signal (usually orange or white) faces the channel markings on the receiver, positive (red) sits in the middle, and negative/ground (brown or black) faces the outside edge of the case. Futaba-pattern connectors have a small keying rib that makes them physically impossible to plug in backward. JR/universal-style connectors don't have that rib — it's entirely possible to seat one reversed, which swaps signal and ground rather than damaging anything outright, but it will stop that servo from responding correctly. If a servo does nothing or twitches oddly, check orientation before assuming it's dead.

For twin-aileron setups, you've got two options: a Y-harness running both servos off a single channel, or two separate channels mixed together in the radio (often labeled "Dual Aileron" or "Wing Type"). The Y-harness is simpler to wire but doesn't allow differential or independent trim between the two ailerons — fine for a docile trainer, worth avoiding on anything meant to fly precise aerobatics.

Budget metal-gear servos like the MG90S 4-pack are a reasonable starting point for a trainer or sport foamie, and a Y-harness covers the single-channel dual-aileron route. For servo sizing by airframe and control surface, our servos guide goes deeper.

Step 6 — Never Plug the Balance Lead Into the Receiver

Your LiPo has two connectors: the main power leads (which go to the ESC) and a smaller multi-pin balance lead, which exists purely for charging and cell monitoring. On some batteries, that balance connector happens to physically fit into a receiver port — and every so often, someone plugs it in expecting it to work like the main power connection. It doesn't. It sends unregulated per-cell voltage straight into a circuit built for 5-6V, and it will fry the receiver.

The balance lead has exactly one job: connecting to your charger. Keep it away from anything else on the plane.

Step 7 — The Power-On Sequence (Don't Skip This Order)

Once everything is wired, how you power it up matters as much as the wiring itself:

1. Turn on the transmitter first.
2. Set the throttle stick to minimum.
3. Connect the battery last.
4. After flying, disconnect the battery first, then turn off the transmitter.

Connecting the battery before the transmitter is on risks the ESC picking up stray signal and spinning the motor unexpectedly with a prop attached. It's a simple habit, but it's the one piece of the sequence every experienced builder repeats without fail.

Step 8 — Calibrate Your ESC Endpoints

A new ESC needs its throttle range calibrated to your transmitter before its first real run. The general process: put the throttle channel in reverse if needed, set your radio's ATV/EPA (end point adjustment) to roughly 100-120%, then follow your specific ESC's calibration sequence — typically powering on with the throttle stick at full, waiting for a tone, then bringing it to minimum. Skipping this step is a common reason a motor feels unresponsive at low throttle or cuts out unexpectedly, and it takes under a minute to do properly.

Step 9 — Bench-Test Before It Goes Anywhere Near a Wing

Before the electronics go into the airframe, prop still off, run through a full check: confirm the motor spins the correct direction, confirm each control surface moves the correct way when you move the corresponding stick (not the opposite — a reversed aileron looks fine sitting still and becomes obvious, badly, the moment you try to fly it), and confirm the range holds by walking the transmitter a reasonable distance from the receiver. A servo tester is useful here too, letting you verify individual servos in isolation before they're all fighting for the receiver's attention at once.

Sizing Your Wiring by Airframe

The wiring logic above holds for nearly every fixed-wing electric setup — what changes is scale.

If you're assembling parts from scratch rather than buying pre-matched components, all-in-one combos like the FPVKing motor/ESC/servo kit or the HOBBYMATE power combo bundle matched parts and can save a first-timer real troubleshooting time, even if piecing together individual components ultimately gives you more control over quality. For a full breakdown of build levels, see our ARF vs RTF vs PNP guide and our scratch-build guide.

Common Mistakes to Avoid

• Reversing battery polarity into the ESC. The single most common cause of ESC failure, and it's instant and unrecoverable. Mark your leads.
• Plugging the LiPo balance lead into the receiver. It fits on some batteries. It will still fry the receiver.
• "Fixing" motor direction through the radio instead of swapping phase wires. Reprogramming the ESC and physically swapping wires can cancel each other out, leaving you more confused than before.
• Reversing a non-keyed JR servo connector. Futaba-style connectors can't be plugged in backward; universal JR-style ones can, swapping signal and ground.
• Skipping ESC endpoint calibration. Leads to unresponsive low throttle or unexpected cutouts.
• Undersizing the ESC relative to the motor. Size it 10-20% above the motor's max rated current, not equal to it.
• Using a Y-harness where independent aileron control matters. Fine for a trainer, a real limitation for anything aerobatic.

Frequently Asked Questions

Conclusion

There's no single wiring diagram that covers every RC plane, because the diagram isn't really the hard part — the order and the polarity are. Battery last on, battery first off. Motor direction fixed by swapping wires, never by reprogramming. Balance lead nowhere near the receiver. Get those right, along with matching connectors to your build's scale, and the rest of the wiring is four straightforward connections repeated across every electric fixed-wing you'll ever build.

If you're still sourcing parts, start with our motors guide and ESC guide to make sure what you're wiring together is actually matched in the first place, then check our servos guide for sizing by control surface. And once the electronics are sorted, our scratch-build guide picks up exactly where this one leaves off. If you want to dive deeper into receivers and radio systems before powering anything up, our transmitter and receiver guide covers that full decision tree, and our LiPo battery guide walks through safe charging and cell monitoring once you're wired.
