If you have ever installed a servo that felt strong on the bench but buzzed, burned out, or simply couldn't hold a surface in a dive, the problem almost certainly wasn't the servo spec sheet — it was the control chain between the servo horn and the hinge line. This guide covers the rc-plane-build-from-scratch side of the equation that most "analog vs digital" articles skip: how to calculate the torque you actually need, how to transfer that torque to the surface without losing it to slop and flex, and how to set deflection mechanically before you touch the transmitter.
Three groups of pilots need this information. Beginners who bought an ARF and are sizing replacement or upgrade servos. Intermediate pilots moving off stock plastic-gear units onto something that won't strip on a hard landing. Builders working through hinges, control horns and pushrod geometry on a balsa kit or scratch design. All three groups will find the same principle applies: a 200 oz-in servo is wasted if the pushrod flexes, the clevis has slop, or the horn is seated in soft foam with no hard point beneath it.
The methodology here is deliberate and quantified. You will find an actual torque-sizing formula, representative specs for every size class, verified affiliate links, and deflection ranges per surface. What you will not find is hand-waving like "bigger plane equals bigger servo." The difference between a servo that lasts three years and one that burns out on the maiden flight is almost always installation discipline, not brand.
This guide is most useful for pilots moving past RTF electronics into purposeful builds — whether that is a best-rc-planes-for-beginners ARF upgrade or a full balsa warbird build.

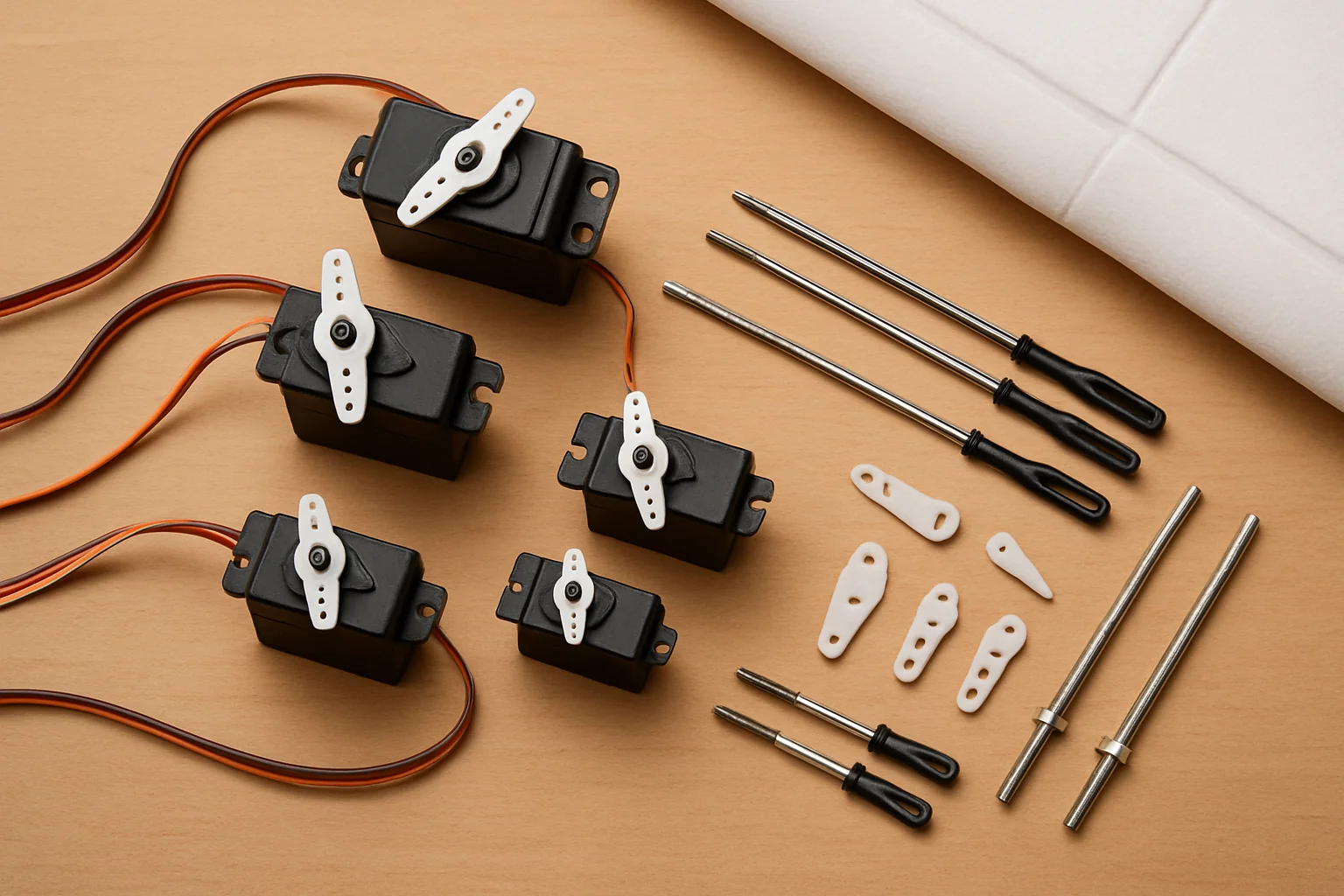

What You'll Need
- Servo(s) appropriate to aircraft size (see sizing section below)
- Control horn set (DU-BRO #237 or equivalent nylon T-style)
- Pushrod material: threaded steel rods and 4-40 E/Z connectors, or carbon rod with clevises
- Hinge material: CA hinges (Mylar slot style) or Robart pinned hinge points
- Thin, medium, and thick CA glue
- Servo mounting screws and grommets/eyelets
- Small drill, hobby knife, pushrod bending tool
- Digital caliper or ruler for moment-arm measurement
- Thread-lock (for E/Z connectors and threaded clevises)
Before You Start — Understanding the Control Chain
A servo's rated torque means nothing in isolation. The torque that reaches the control surface is the product of the servo's output, the servo arm length, the horn position, the stiffness of the pushrod, and the integrity of every connection in between. The full chain is:
Servo motor → gearbox → servo arm → pushrod → control horn → hinge line → surface
Failure at any link in that chain degrades control authority, adds flutter, or destroys the servo. The sections below cover each link in sequence, because that is the order in which they affect each other.
Step 1 — Size Classes and When to Use Each
RC plane servos come in four practical size classes. The names are not rigidly standardized across manufacturers, but the physical dimensions and torque ranges are consistent enough to use as a framework.
| Class | Typical weight | Typical dimensions (mm) | Torque range (6V) | Use case |
|---|---|---|---|---|
| Micro | 8–16 g | ~23×11×24 | 25–55 oz-in | Park flyers, micro warbirds, UMX-class; ailerons and elevator on 400–600mm planes |
| Mini | 20–36 g | ~32×17×31 | 55–100 oz-in | Tail surfaces and flaps on 1–1.5m sport; full-house on 600–900mm |
| Standard | 37–55 g | ~40×20×36 | 44–280 oz-in | General-purpose for 1–2m sport, trainers, warbirds; a wide range because digital standard servos vary enormously |
| Giant | 55–100 g+ | ~40×20×37+ | 200–600+ oz-in | All surfaces on 2m+, giant scale, aerobatic, pattern; redundant installations on 30cc+ gas |
The "standard" class is misleading. A Futaba S3003 analog (37 g, nylon gear, 57 oz-in at 6V) and a Savox SA-1256TG digital coreless (52–64 g, titanium gear, 278 oz-in at 6V) are both technically "standard" by footprint. The torque difference is nearly fivefold. Size class alone tells you nothing about capability — you have to size by torque.
Step 2 — Analog vs Digital: What the Difference Actually Buys You
The update rate argument. Analog servos update at approximately 50 Hz. Digital servos update at approximately 300–400 Hz. That faster update rate is not an advantage in every situation.
What the higher rate buys you: digital servos reach and hold their commanded position faster, deliver rated torque from rest more quickly via rapid micro-corrections, and resist external deflection (wind, air loads, vibration) more effectively. On a 3D plane doing snap rolls, or a large fast model in turbulent air, that matters.
What it does not buy you: a better flying trainer. Digital is not automatically better. For foamies, trainers, and gentle aerobatics, an analog servo is quieter, draws less idle current (analog idle is approximately 7.7 mA versus a digital servo's higher quiescent draw), and is perfectly adequate. The community consensus, echoed in the FliteTest Servos 101 guide, is direct: "You can absolutely put digital servos onto one of our foamies and it will fly just as well as if it had analog servos." Use digital where its speed and holding torque actually matter. Use analog where it doesn't, and save the weight and cost.
The motor type argument. Most servos use cored (ferrite) motors: cheap, reliable, adequate. Coreless motors use a lighter wound coil without an iron core, which reduces inertia and increases response speed significantly. Coreless servos like the Savox SA-1256TG are meaningfully faster and more efficient than cored equivalents at the same torque spec. For precision aerobatics and large models where centering accuracy translates directly to flight behavior, coreless is worth the premium.
Gear material. Plastic and Karbonite (Hitec's reinforced nylon composite) gears are lighter, quieter, and self-lubricating. They survive low-stress foamie use without issue. Under shock loads — a hard landing, a stripped linkage, a ground strike — plastic strips. Metal gears (steel, aluminum, titanium) resist stripping under those same loads but add weight. Titanium gears (as in the Savox SA-1256TG) give metal-gear durability at near-aluminum weights. For any model where a stripped gear results in loss of a critical surface in flight, use metal gears on that servo.
Step 3 — Torque Sizing: The Calculation You Should Actually Do
Most guides tell you to use a rule of thumb. The rules of thumb exist because calculating servo torque properly requires knowing your aircraft's speed, surface area, and air loads — parameters most hobby pilots don't have. But there is a middle path: a formula that gives you a sanity check, paired with rule-of-thumb brackets as a cross-reference.
The formula:
Required torque (oz-in) = Aerodynamic force on surface (oz) × Control horn moment arm (inches)
Apply a 1.5–2× safety margin on top for gusts, aerobatic loads, and landing shocks.
In practice, calculating the aerodynamic force on a surface requires knowing your airspeed and surface area, which makes this hard to use from scratch. The practical approach is to start from the rule of thumb, then sanity-check with the formula using a reasonable estimated load.
Rule-of-thumb torque by aircraft category:
| Aircraft category | Torque range (oz-in) | Torque range (kg-cm) |
|---|---|---|
| Micro/foamie (<400mm) | 20–30 oz-in | 1.5–2.2 kg-cm |
| Foam trainer / park flyer (400–800mm) | 25–50 oz-in | 1.8–3.5 kg-cm |
| 1–2m sport / warbird | 55–120 oz-in | 4–8.5 kg-cm |
| 3D aerobatic / fast pattern | 140–280+ oz-in | 10–20+ kg-cm |
| 40-size (community benchmark) | ~80–100 oz-in | ~5.7–7.2 kg-cm |
| 60-size (community benchmark) | ~130–170 oz-in | ~9.3–12.2 kg-cm |
| 30cc gas (community benchmark) | ~170–230 oz-in | ~12.2–16.5 kg-cm |
| 50cc gas (community benchmark) | ~400 oz-in | ~28.7 kg-cm |
The community-sourced figures in the bottom four rows (sourced from experienced builders) are based on actual installation experience rather than aerodynamic calculation. There is meaningful variation between pilots. Treat them as minimum starting points and apply your 1.5–2× margin.
Why the moment arm matters more than most pilots realize. If your control horn has a 1-inch moment arm from the hinge line to the pushrod attachment hole, and the aerodynamic load on the surface is 20 oz, you need 20 oz-in of torque at the horn. If you move to a 1.5-inch moment arm (outer horn hole), you now need 30 oz-in for the same load. The geometry of the horn directly multiplies or divides the load on the servo. This is why choosing the correct horn hole is not a minor detail.
Step 4 — Servo Selection by Surface and Flying Style
Ailerons on trainers and park flyers. Micro servos in the 25–35 oz-in range are appropriate. The Hitec HS-65HB (31 oz-in at 6V, 11.06 g) has been the benchmark micro analog for years. It runs reliably at 4.8–6V, uses Karbonite gears that survive light shock loads, and at roughly 11 g it adds almost no weight to a small wing panel.
→ Check the Hitec HS-65HB on Amazon
Ailerons on micro and warbird builds where shock resistance matters. The Savox SH-0255MG (54 oz-in at 6V, 15.8 g, metal gear, aluminum middle case) delivers near-mini torque in a micro footprint. It is the upgrade path when the HS-65HB's Karbonite gears are not adequate for the application — typically small warbirds with retractable gear where a rough landing loads the linkage hard. Note: Savox digital servos draw high stall current (1200–1400 mA). A perfectly smooth, bind-free control system is not optional. Any binding will burn out the motor.
→ Check the Savox SH-0255MG on Amazon
Standard surfaces on 1–2m trainers and sport models. The Futaba S3003 (57 oz-in at 6V, 37.2 g, nylon gear) remains the default sport and trainer standard servo for a reason: it is reliable, widely available, and adequately torqued for most 1–1.5m aircraft. Its weakness is the nylon gear, which will strip under shock. Buy from a reputable authorized seller — counterfeit S3003s are common on marketplaces and exhibit erratic behavior with visibly slower response.
→ Check the Futaba S3003 on Amazon
Tail surfaces and flaps on 1–1.5m sport where you want digital holding torque. The Hitec HS-5245MG (76 oz-in at 6V, 32 g, metal gear, dual ball bearings) is the upgrade from the S3003 class when you want faster response and better flutter resistance. The caveat is the same as any high-torque digital: it requires a perfectly smooth linkage. As experienced builders note, high-power digital servos will destroy themselves against binding in the control system.
→ Check the Hitec HS-5245MG on Amazon
Pattern, precision aerobatic, and large scale (2m+). The Savox SA-1256TG (278 oz-in at 6V, titanium and aluminum gears, coreless motor, 12-bit 4096-step resolution) is the aircraft-specific version of the SC-1256TG. The SA designation matters: it is built with minimized backlash for flying surfaces, which reduces the slop that costs you centering precision. The SC (car) version carries the bulk of the reviews on Amazon and is near-identical in spec, but the SA SKU is the correct aircraft purchase.
→ Check the Savox SA-1256TG on Amazon
Step 5 — Servo Arm and Control Horn Geometry
Getting this geometry right is where most builders lose torque they already paid for. The relationship between servo arm length, horn position, and mechanical advantage determines whether the servo's rated torque actually arrives at the hinge line.
Servo arm position at neutral. The servo arm should be perpendicular to the pushrod at the neutral (center) position of the control surface. This gives the most linear response through the full travel range. If the arm is angled at neutral, you get unequal throw up and down, and one direction loads the servo harder than the other.
Control horn position. Mount the horn so that the pushrod attachment hole is as close to 90 degrees to the surface as possible at neutral. A horn mounted at an angle reduces mechanical advantage and introduces differential throw even when the servo arm is correctly positioned.
Which hole to use — servo arm and control horn. This is the linkage decision that most affects resolution and servo load:
- Innermost servo arm hole + outermost horn hole = least travel, most resolution, least servo load. Use this for precise surfaces (ailerons on pattern planes, elevator on a glider) where you need fine control authority rather than large deflections.
- Outermost servo arm hole + innermost horn hole = most travel, least resolution, most servo load. Use this for surfaces requiring large deflection (rudder on a 3D plane, elevator on a floaty foamie).
The common mistake is to set the linkage geometry for maximum throw and then dial it back at the transmitter using EPA (end-point adjustment) or dual rates. Reducing throw electronically reduces the resolution of the servo's 1024 or 4096 steps across a smaller physical arc, which adds effective slop into the system. Set throw mechanically first with arm and horn hole selection, then use EPA only for minor fine-tuning. As one RCGroups veteran puts it, reducing throw at the servo arm electronically "just adds slop into the system and should be avoided where possible."
Step 6 — Control Horn Installation
Material. Nylon and carbon-reinforced nylon (DU-BRO T-style) are the standard for trainers and sport models. They are light, non-corrosive, and adequate for the torque loads of most ARF and foam aircraft. For large or fast models, metal horns or factory-bonded composite horns provide better rigidity.
The DU-BRO Nylon T-Style Control Horn Set (#237) remains the default for ARF and scratch builds up through 1.5m sport aircraft. The T-style backplate distributes the attachment load across the surface rather than concentrating it at two screw points.
→ Check DU-BRO #237 Control Horns on Amazon
Mounting surface. The single most common installation error is mounting a control horn directly into soft foam or soft balsa without a hard point underneath. The screws will pull through the surface under flight loads, introducing slop and, in a worst case, allowing the horn to rock. On foam models, reinforce the mounting area with a small ply or hardwood plate glued beneath the surface. On balsa models, make sure horn screws pass through a ply former or sheeting strip, not unsupported sheet balsa.
Hole sizing. Do not overdrill the horn holes for the pushrod clevis pin. Excess clearance allows the pushrod to rattle in the hole and contributes to surface flutter at higher speeds. The pin should fit with light resistance and minimal free play.
Position. Mount the horn directly over the hinge line, not forward or aft of it. Any offset from the hinge changes the effective moment arm as the surface deflects, creating nonlinear throw.
Step 7 — Pushrod Types and Selection
The pushrod transmits servo movement to the control horn. Its stiffness determines how much of the servo's output is lost to flex before it reaches the surface.
Wire Z-bend pushrods. The simplest form: a straight wire rod with a Z-bend at the servo end. The Z-bend engages directly in a servo arm hole without any connector hardware. Light, cheap, easy to make. The downside is that adjustment requires physically bending the rod or moving the Z in the arm, and the Z-bend needs a removable servo arm to install or change. Adequate for slow, light aircraft. Not appropriate for high-speed or aerobatic models where vibration can work the Z out of the arm.
Threaded rod with clevis connectors. The standard for most sport and warbird builds. A threaded steel or aluminum rod ends in a clevis pin that drops into the horn hole. Length is adjusted by threading the clevis in or out. Use one threaded clevis at one end and a soldered or crimped connection at the other. Do not use two threaded clevises on the same rod — vibration from gas or glow engines will unscrew at least one of them in flight.
Thread-lock on threaded clevises is not optional on gas and glow planes. On electric models it is a strong recommendation. E/Z connectors (snap-lock nylon connectors that grip the servo arm hole) are a convenient alternative to clevises, but they share the same vulnerability to loosening. Tighten them firmly and add thread-lock. Limit E/Z connectors to approximately 90-size models and smaller — for giant scale, switch to threaded clevises or ball links.
The DU-BRO 4-40 E/Z Connector Set (#605, 12-pack) is the practical standard for ARF linkage work.
→ Check DU-BRO #605 E/Z Connectors on Amazon
Carbon pushrod tubes. For long runs (full-length aileron pushrods on a 2m glider, elevator pushrods on a large fuselage), wire rods flex under load. Carbon tubes with threaded end connectors are lighter and far stiffer. They are standard on competition gliders and large ARF warbirds, and a meaningful upgrade on any build where pushrod flex is costing you control authority.
Pull-pull cable systems. Two-cable systems pulling in opposite directions are common for rudder control on large models, where a single pushrod would be too long to remain stiff. Each cable terminates in an adjustable clevis at the horn. Tension must be matched on both cables, and the cables must be routed with gentle curves, not sharp bends. Pull-pull is also used for elevator on some pattern and aerobatic models where the extra weight of a carbon pushrod run through the fuselage is not worth it.
Step 8 — Hinge Types and Installation
The hinge carries all control surface loads back to the airframe. A loose hinge is a flutter source; a stiff hinge creates drag and loads the servo. The correct hinge is tight enough to hold the surface securely with no slop, free enough to move without resistance under servo load.
CA hinges (Mylar slot hinges). The most common hinge for foam and balsa ARF models. A strip of thin Mylar-like material is cut to size, slotted into matching cuts in the airframe and surface, and locked with thin CA that wicks into the joint by capillary action. The result is a very light, low-drag hinge that integrates completely into the structure. Installation discipline matters: the slots must be straight and aligned, the hinge must flex on the center of the material, and thin CA must be applied with the surface at full deflection so CA doesn't lock the hinge in a single position.
Robart Hinge Points (pinned hinges). Separate plastic knuckles with a stainless steel pin. Install by drilling a hole at each hinge location, epoxying the hinge halves into airframe and surface, and snapping them together on the pin. More durable than CA hinges on larger aircraft, easier to replace if damaged. Standard on balsa ARF kits and traditional scratch builds above about 60-inch wingspan.
Living hinges. On EPP and EPO foam models, the manufacturer often leaves a thin strip of intact foam between the surface and the wing to act as the hinge. These are light and require no installation. Their weakness is that repeated high-deflection cycling will fatigue them over time. For sport use they are adequate; for aggressive 3D where the surfaces go to full deflection repeatedly, supplement them with CA at the hinge line or replace with proper CA or Robart hinges.
Hinge gap. Leave enough gap for free movement but seal the gap with tape or a flexible sealant on sport and scale models. An open hinge gap allows high-pressure air from the lower surface to leak to the upper surface, reducing surface effectiveness and creating a pressure fluctuation that loads the servo continuously. Sealing the gap improves surface authority and reduces the servo load that has to be overcome just to hold position in cruise. On trainer and park-flyer builds this is a minor issue; on faster models or large surfaces it becomes significant.
Step 9 — Servo Mounting
Grommets and eyelets. Most servos ship with rubber grommets and brass eyelets for vibration isolation. The grommet fits through the mounting hole in the servo tray; the eyelet goes through the grommet and accepts the mounting screw. The critical detail that gets missed: the grommet's flange (the wider brim) must sit under the grommet — between the grommet and the tray — not on top. Installed incorrectly, the metal eyelet contacts the servo case directly, bypassing the rubber and transmitting the full vibration load into the servo housing.
Rail vs glued mounting. Most foam ARFs use a servo rail (a formed plastic or ply channel in the wing) into which the servo slides and is retained with screws through the grommets. Balsa builds typically use a ply servo tray glued to the rib structure. Either system works. What does not work is a loose servo that can rock in its mount — a rocking servo introduces slop, loads the arm at an angle, and eventually breaks the mount. Check that the servo fits its mount snugly before flying.
Pushrod routing. Pushrods should exit the servo arm in a straight line to the horn at neutral, with no bends between connection points. Where bends are necessary (routing around a rib, exiting through a fuselage side), keep them gentle — any sharp bend in a wire rod flexes under load and absorbs servo movement rather than transmitting it. Sleeve wire rods through conduit (often plastic tube) for long unsupported runs to prevent side-bow.
Step 10 — Setting Control Surface Deflection
Set throw mechanically before touching the transmitter. This is the single most important discipline for clean linkage geometry. Choose your servo arm hole and horn hole combination to produce approximately the right deflection before any electronic adjustment. Then use EPA or dual rates only for final trimming. Reducing servo arm throw electronically (setting 70% EPA on a servo that physically throws 100%) compresses the full signal range into a smaller physical arc. You get the same number of steps from the radio over a narrower range, which means more movement per step — exactly the opposite of higher resolution. The result is a servo that feels coarser and less precise than it should.
Deflection reference starting points:
| Surface | Normal/pattern flight | 3D aerobatic |
|---|---|---|
| Aileron | 12–15° each direction | 35–45° each direction |
| Elevator | 12–15° each direction | 45–60° each direction |
| Rudder | 20–25° each direction | Full throw (45–60°) |
| Flaps | Per model spec (typically 30–45°) | N/A |
These are starting points for initial setup. After the maiden, reduce throws if the model is over-responsive, or increase if it feels sluggish. Make those final adjustments with dual rates at the transmitter — but the first setup should be done with horn and arm geometry, not electronics.
Common Mistakes to Avoid
Installing horn into soft material without a hard point. The screws will pull through under load. Always back up the horn mounting with a ply or hardwood plate on foam and soft balsa models.
Two threaded clevises on one rod. One will unscrew in flight on a gas or glow model. Use one threaded clevis and one soldered or fixed connection per rod.
Using E/Z connectors without thread-lock. They loosen. Apply thread-lock and tighten firmly. For giant scale, switch to threaded clevises or ball links entirely.
Binding in a digital servo installation. High-torque digital servos draw high stall current (1200–1400 mA or more). Any binding in the control system — a pushrod that catches, a horn hole that's too tight, a misaligned linkage — will cause the servo to run against the obstruction and overheat. Bench-check every servo for smooth, full-range movement with no resistance before installing in the model.
Installing grommets upside down. The flange brim goes between the grommet and the tray — not on the top. Reversed grommets transmit vibration directly into the servo case.
Reducing throw electronically as the primary adjustment. Set throw mechanically first. Use EPA for fine-tuning only.
Over-drilling horn holes. The clevis pin should have minimal free play. Excess clearance allows the pushrod to rattle and contributes to flutter.
Buying Futaba S3003 units from unverified marketplace sellers. Counterfeit S3003s are common and exhibit erratic, visibly slow response. Buy from authorized dealers or established retailers.
Frequently Asked Questions
Q: Do I need digital servos for a beginner trainer?
No. Analog servos are perfectly adequate for trainers and slow sport models. The higher update rate of digital servos matters on fast or 3D aircraft where rapid surface correction is needed. For a high-wing foam trainer, an analog servo in the 25–50 oz-in range will fly identically to a digital equivalent and will cost less and draw lower idle current.
Q: How do I know if my servo torque is sufficient?
Apply the formula: Required torque = estimated surface load (oz) × horn moment arm (inches), then multiply by 1.5–2 for a safety margin. Cross-check against the rule-of-thumb brackets in Step 3. If your result sits inside the bracket for your aircraft category, you are sized correctly. If it falls below, size up.
Q: My digital servo buzzes at rest and gets warm. What's causing it?
Two common causes. First, binding in the control system — any resistance in the linkage causes a digital servo to continuously fight against the obstruction, drawing stall current. Check for smooth, free movement through the full travel range. Second, trim is fighting the servo — if the surface is trimmed away from mechanical neutral, the servo holds a constant correction. Set the mechanical linkage so neutral trim on the radio corresponds to neutral surface deflection.
Q: What is the difference between the Savox SA-1256TG and the SC-1256TG?
The SA (airplane) version is built with minimized gear backlash specifically for flying surfaces, where centering precision translates directly to aircraft tracking. The SC (car) version uses the same gearbox with slightly more backlash tuned for car steering applications. The SC carries the bulk of Amazon reviews because the car market is larger. For aircraft use, order the SA-1256TG specifically.
Q: Can I use pull-pull on elevator as well as rudder?
Yes, and it is common on large aerobatic and pattern models where a full-length carbon pushrod run through the fuselage adds unnecessary weight. Two cables run in parallel from a servo arm to the horn, one pulling each direction. Match cable tension precisely and use adjustable clevises or ball links for final tensioning. Route cables without sharp bends.
Q: How often should I inspect servos and linkages?
Before every flight session on gas and glow models (vibration loosens connections). Before every flight on electric models if you are flying frequently; a full inspection before each day's flying is good practice. Pay particular attention to E/Z connector and clevis tightness, horn screw torque, and pushrod straightness. Catch a loose connection on the ground — not mid-flight.
Conclusion
Servo selection starts with torque sizing, but a correctly sized servo in a poorly built control chain is still a poorly controlled aircraft. The calculation is straightforward: estimate the aerodynamic load, multiply by the horn moment arm, add a 1.5–2× safety margin, and choose the servo class that covers that number with margin to spare.
From there, the hardware decisions follow logically. Use analog on trainers and slow sport models where digital's higher update rate adds no real benefit. Use digital coreless on fast, aerobatic, and large models where centering speed and holding torque matter. Use metal gears wherever a stripped gear means a lost surface. Mount horns over hard points, use the right clevis and pushrod combination for your model's size, seal the hinge gaps on anything that flies above trainer speeds, and set throw mechanically before touching the transmitter.
The pilots who consistently get clean, predictable control from their servos are not the ones who bought the most expensive units — they are the ones who installed even modest servos correctly. That is the actual skill this guide is about.
