Swap a prop and you've changed the airplane. Bolt a 10x6 onto a trainer built around a well-matched motor and it climbs out lazily but predictably. Bolt on an 11x7 instead, and the same motor now pulls current it was never designed to handle, the ESC runs hot, and a perfectly good power system dies for no reason anyone can diagnose from the ground. Propellers get treated as an afterthought — the last part bought, the first part guessed at — when they're actually the single component that decides whether an airframe flies the way it was designed to.
The confusion is understandable. Two numbers stamped on a plastic blade don't explain much on their own, and the internet is full of advice that sizes props to the engine or motor rather than to the airplane itself. That's backwards. A 3D foamie, a giant-scale warbird, and a thermal glider can all run the same 900Kv motor on the same voltage — and each one needs a completely different propeller to fly the way it's meant to.
This guide breaks propeller sizing down the way it should be approached: by airframe and flying style first, motor specs second. It covers what diameter and pitch actually do, how to read the alphabet soup of suffixes stamped on different brands' props, which materials trade efficiency for durability, and the handful of formulas that let you predict RPM and airspeed before you ever bolt a prop on. It also covers the mistake that kills more electric power systems than any other: sizing a prop to bench thrust instead of to the ESC's actual amp limit.
As an Amazon Associate, this site earns from qualifying purchases.
Quick Reference — Prop Sizing at a Glance
| Concept | What It Means |
|---|---|
| Prop number (e.g. 10x6) | Diameter × pitch, both in inches |
| Diameter | Sets static thrust — thrust scales with swept disc area |
| Pitch | Sets theoretical forward travel per revolution — the closest thing to "speed" on the spec sheet |
| Airspeed formula | mph ≈ pitch (in) × RPM × 0.00095 |
| Unloaded RPM | ≈ Kv × pack voltage, then subtract roughly 10–20% for load once the prop bites the air |
| APC glow / Speed-400 electric max RPM | 190,000 ÷ diameter |
| APC Thin Electric max RPM | 150,000 ÷ diameter |
| APC Slow Flyer max RPM | 65,000 ÷ diameter |
| Load-equivalence rule | 9x7 ≈ 10x6 ≈ 11x5 in terms of motor load — raise pitch or diameter alone and load goes up |
| Safe ESC margin | Keep continuous draw at or below roughly 80% of the ESC's rated amps, verified with a wattmeter |
How Propeller Sizing Works
Every propeller is described by two numbers, diameter and pitch, both in inches — a 10x6 spins a 10-inch circle and would theoretically travel 6 inches forward per revolution if it behaved like a screw threading through a solid. It doesn't, because air isn't solid; some of that theoretical travel is lost to slip. But the two numbers still describe two very different jobs, and separating them is the key to understanding sizing.
Diameter is grunt. Thrust scales with the swept area of the disc the blades carve out, and that area scales with the square of the radius. Going from a 10-inch prop to an 11-inch prop doesn't add 10% more thrust-producing area — it adds roughly 21%, because area grows faster than diameter. That's why a bigger prop feels so much punchier off the line even at the same pitch, and why giant-scale warbirds and gas trainers lean on large diameters for authority at low RPM rather than trying to spin a small prop faster.
Pitch is speed. It's the theoretical forward distance per rotation, and it's the number that most directly maps to how fast an airplane can fly and how "loaded" the motor feels turning it. The airspeed estimate works like this:
Airspeed (mph) ≈ pitch (inches) × RPM × 0.00095
A 6-inch pitch prop spinning at 10,000 RPM predicts roughly 57 mph of theoretical airspeed. It's a ceiling estimate, not a guarantee — real-world slip, drag, and airframe efficiency pull the actual number down — but it's accurate enough to compare two prop choices before committing to either.
Both numbers load the motor. Increase diameter or pitch and the propeller bites more air per revolution, which means more torque required to turn it, which means more current drawn and lower actual RPM under load. This is why experienced builders talk about "load equivalence": a 9x7, a 10x6, and an 11x5 impose roughly the same load on a given motor, even though none of them share a single number. Change one dimension without adjusting the other and you've changed the load — sometimes past what the motor and ESC were built to handle.
Diameter and Pitch — What the Numbers Actually Mean in Practice
Once the theory is out of the way, the practical question is which direction to move when an airplane isn't performing the way you want.
Need more punch off the ground or better vertical performance? Go up in diameter, or down in pitch — both increase the load per revolution and shift the balance toward thrust over top speed. This is the direction 3D and hover-capable setups lean.
Need more top speed and less blade drag? Go up in pitch, or down in diameter — this trades some low-speed thrust for a higher theoretical top end. Pattern and warbird setups chasing scale speed often move this way.
Current draw climbing too high on the bench? Drop pitch by half an inch to a full inch before touching diameter. Pitch changes tend to have a more immediate effect on current at a given RPM, and it's the adjustment most pilots reach for first when a wattmeter reading comes in hot.
The trap here is treating bench numbers as flight numbers. A propeller pulls its highest current static, sitting still on the ground, because that's when it's working hardest against undisturbed air. The moment the airplane starts moving forward, the prop is biting air that's already moving toward it, the effective angle of attack on the blades drops, and both thrust and current fall. A prop that looks alarming on a bench wattmeter reading can behave completely differently in the air — which is exactly why static thrust numbers from a stand or a forum post should never be read as flight performance. Confirm current draw with a wattmeter on the bench as a safety check, but judge the actual flying behavior in the air, not before it.
Reading Prop Nomenclature Across Brands
The diameter-by-pitch number is universal, but the suffixes that follow it are brand-specific, and mixing them up is a common source of buying the wrong prop.
| Suffix / Term | Meaning | Typical Brand |
|---|---|---|
| No suffix | Standard right-hand sport prop, usually intended for glow/gas but usable on electric | APC |
| E | Electric-specific airfoil, thinner cross-section tuned for electric RPM ranges | APC (Thin Electric / E-Series) |
| SF | Slow Flyer — low pitch, low RPM ceiling, built for park flyers and trainers | APC, GWS |
| W | Wide-blade, built for 3D and fun-fly torque | APC |
| P | Matched pusher — reverse rotation for pusher-configuration airframes | APC |
| MR | Multirotor-tuned — not a fixed-wing recommendation despite the crossover in materials | APC |
| DD | Direct Drive — heavier, stronger nylon blade for higher-RPM direct-drive setups | GWS |
| Scimitar | Swept-tip glass-fiber composite blade shape, marketed for thrust and reduced noise | Master Airscrew |
| PJN / PJA / PJWWII | Beechwood electric / gas sport / scale warbird lines | Xoar |
The most important distinction for electric flyers is E vs. no-suffix on APC props: the standard Sport line is cut for combustion-engine RPM ranges, while the Thin Electric E-Series uses a thinner airfoil designed around electric motors' higher RPM and lower torque characteristics. Running a standard Sport prop on an electric setup isn't dangerous, but it's rarely the most efficient choice — and running an E-Series prop rated for 150,000 RPM ÷ diameter past its limit on an overpowered setup is a real way to lose a blade in flight.

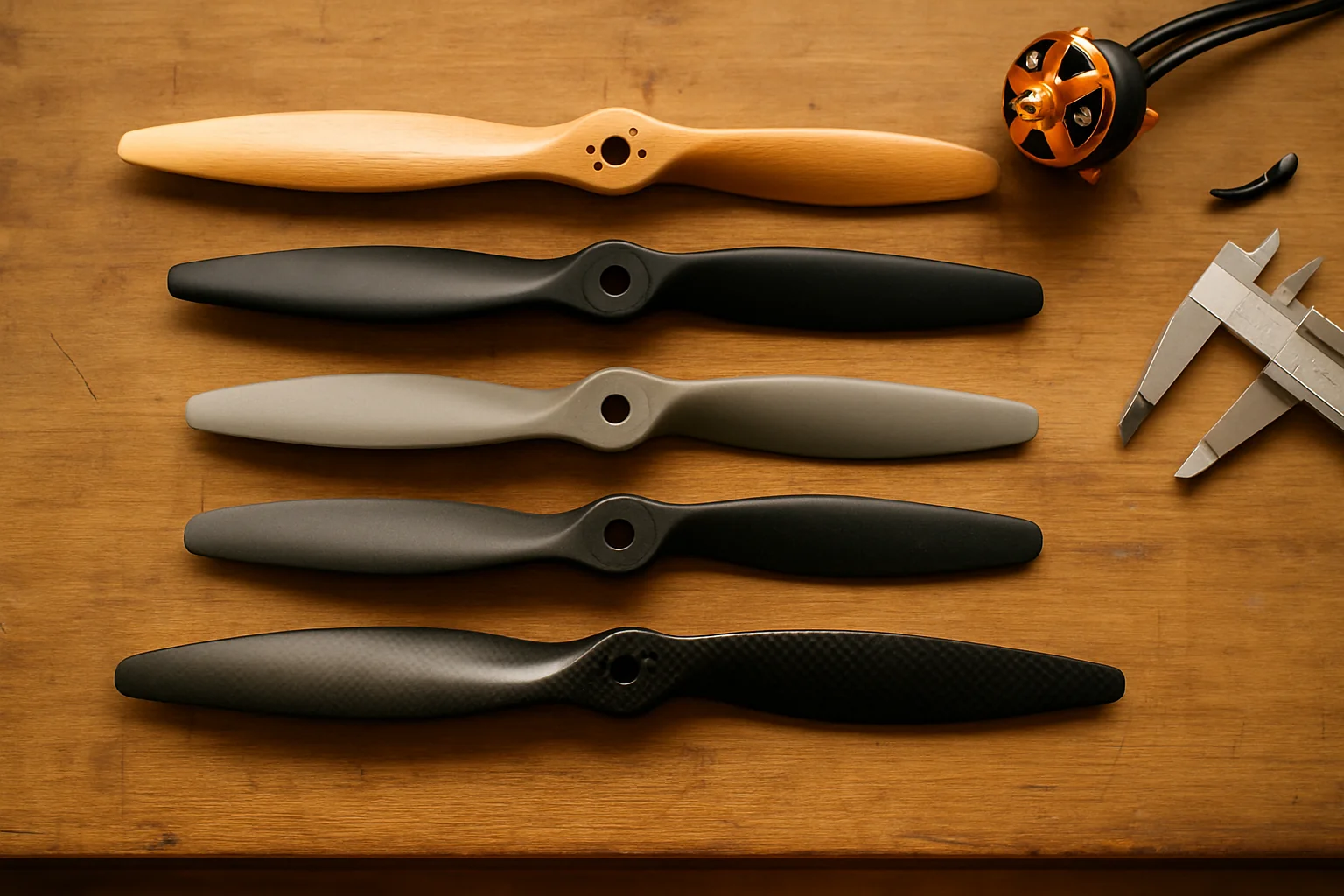

Materials — Wood, Nylon, Glass-Filled Nylon, Carbon
Material choice is a durability-versus-performance trade-off, and the "best" material depends entirely on what kind of flying and crashing a given airframe will do.
| Material | Strengths | Weaknesses | Best For |
|---|---|---|---|
| Pultruded fiberglass-nylon (APC) | Stiff, efficient, quiet, consistent factory balance | Brittle — shatters rather than flexes on a hard prop strike | Trainers, sport planes, general electric setups |
| Glass-filled nylon (Master Airscrew) | More flexible, survives ground strikes and hard landings better | Flexes under load (slightly softer throttle response), louder than APC, marginally heavier | Crash-prone 3D flying, beginners still learning to land |
| Wood (beechwood/maple — Xoar, others) | Best throttle response, low vibration, quiet, scale-authentic looks | Fragile — shatters on ground contact, needs spares on hand | Giant-scale gas warbirds, pattern flying, scale builds |
| Carbon fiber | Very stiff, very light, excellent efficiency | Expensive, unforgiving on impact, folding-prop hardware adds complexity | Gliders (folding props), weight-critical builds, high-KV speed setups |
A pattern worth internalizing: stiffness and crash tolerance sit at opposite ends of the same spectrum. The stiffest props deliver the sharpest throttle response and the most efficient power transfer, and they're also the ones that snap instead of surviving a nose-over. Pilots flying 3D routines close to the ground — where prop strikes are a matter of when, not if — often deliberately choose a flexier, less efficient glass-filled nylon prop over a stiffer composite one, because replacing a $4 prop is cheaper than replacing a motor bent by a shattered blade fragment. Multirotor and FPV-quad carbon prop advice does not transfer cleanly here — those props are tuned for entirely different RPM and loading than a fixed-wing setup.
Sizing by Airframe
This is where most sizing guides stop short: they explain diameter and pitch, then leave the reader guessing at what to actually buy. Sizing follows the airframe and its flying style, not the motor spec sheet in isolation.
| Airframe / Style | Typical Prop Range | Notes |
|---|---|---|
| Park-flyer foamies (sub-1kg) | 8x4 to 9x4.7, Slow Flyer type | Prioritize weight and low-RPM thrust over top speed; balance matters more at this scale because vibration transmits directly into a light foam airframe |
| Basic trainers | 9x6 to 11x7 | A middle-of-the-road pitch keeps climb-out predictable without overloading a modest motor |
| Sport / basic aerobatic | 10x7 to 12x6 | More pitch for vertical performance and snap maneuvers, still within a standard motor's comfort zone |
| 3D / high-alpha aerobatics | Wide-blade (W-series) or lower-pitch, larger-diameter combos | Torque and low-speed authority for hovering and prop-hangs matter more than top-end speed |
| Gliders (powered/electric-assist) | Folding carbon props, small diameter | Folds flat against the fuselage in unpowered glide to cut drag; weight is the dominant design constraint |
| Giant-scale gas warbirds | 18 inches and up, often wood or composite | Large diameter for scale-accurate low-RPM authority; wood props are common here for both authenticity and throttle feel |
A glider built for thermal soaring and a giant-scale warbird might both run brushless power, but nothing about their prop needs overlaps — one wants a folding carbon blade that disappears into the fuselage the moment the motor cuts, the other wants a large wood or composite blade that looks and sounds right at low RPM. Meanwhile, trainers and beginner-friendly kits benefit from staying conservative on both diameter and pitch — predictable climb-out matters more than outright performance while a pilot is still learning to read the airplane.
Blade count follows a similar logic. Two blades remain the most aerodynamically efficient configuration for a given diameter and pitch — every additional blade adds drag and reduces efficiency for the same swept area. Three- and four-blade setups exist for ground clearance (common on scale warbirds with big fuselages sitting low to the ground) and for looks rather than performance. The rule of thumb when stepping up in blade count: drop diameter by roughly an inch and add roughly an inch of pitch, or step down a full prop size, to keep the load in a comparable range.
Matching Props to Your Motor and ESC
Prop selection and power system selection are the same decision viewed from two angles. A propeller's load is meaningless without knowing what motor is turning it and what ESC is feeding that motor.
Start with the motor's Kv rating and the pack voltage: unloaded RPM is approximately Kv × voltage, and that number drops by roughly 10–20% once the prop is actually biting air and imposing real load. A 1000Kv motor on a 3S (11.1V) pack predicts roughly 11,100 unloaded RPM, settling closer to 9,000–10,000 RPM once loaded — numbers worth plugging into the airspeed formula before deciding on a final pitch.
The number that actually protects hardware is current draw, not RPM. Every ESC carries a continuous amp rating, and the safe target is to stay at or below roughly 80% of that rating under full-throttle, level-flight conditions — not momentary bursts, sustained draw. The only reliable way to confirm this is a wattmeter on the bench: run the motor at full throttle for 20–30 seconds with the prop installed and read actual amps, not the manufacturer's optimistic prop-size suggestion. If the reading comes in over that 80% mark, drop pitch before diameter — pitch changes tend to bring current down faster for the same visual size change. Full detail on ESC amp ratings and how to read them lives in the ESC guide; pack voltage and C-rating considerations that feed into this same calculation are covered in the LiPo battery guide.
This is also where the electric-versus-glow difference matters most. A glow or gas engine that's over-propped simply bogs down — it loses RPM, runs rough, and the pilot feels it immediately. An electric motor that's over-propped does something more dangerous: it keeps chasing its Kv target, drawing more and more current trying to spin the oversized load, and that runaway current is what cooks ESCs and motors that were otherwise perfectly matched to the airframe. Overpropping is the single most common way an electric power system dies for no obvious reason.
Common Mistakes and Troubleshooting
Sizing to the motor spec sheet instead of the airframe. Two planes can share an identical motor and want completely different props based on weight, drag, and flying style. Buy two or three props within the sane range for the airframe and test rather than trusting a single "recommended" size blindly.
Reading static bench thrust as flight performance. Thrust and current both peak on the ground and fall once the airplane is moving forward. A prop that looks like it's overloading the motor on a stand can fly perfectly normally — and the reverse is also true, so bench numbers are a safety check, not a performance verdict.
Skipping the wattmeter. Guessing at current draw instead of measuring it is how ESCs get cooked. Twenty seconds of full-throttle bench time with a wattmeter in line is cheap insurance against a motor and speed controller that cost far more than the prop.
Never balancing a new prop. Out-of-box balance varies even within the same batch from the same manufacturer. An unbalanced prop vibrates, that vibration loosens fasteners and stresses the motor's bearings over time, and it's a five-minute fix with a basic balancer before the first flight on any new prop.
Ignoring blade-count load changes. Moving from two blades to three or four without adjusting diameter or pitch downward effectively over-loads the motor for the sake of ground clearance or looks — account for it in the size choice, not after the fact.
Assuming FPV or multirotor carbon prop wisdom transfers directly. Multirotor props are tuned around a completely different RPM and loading profile than fixed-wing propulsion. A carbon prop that's excellent on a quad isn't automatically the right call on a fixed-wing glider or sport plane.
Which Propeller Should You Choose?
For most sport and trainer flying, an APC Thin Electric prop in the size range the airframe calls for is the safest starting point — efficient, quiet, and consistent out of the box.
APC 11x7 Thin Electric (E-Series) — the standard reference point for electric sport planes and larger trainers running brushless power in the 800–1000Kv range on 3S. Stiff, efficient, and rated to APC's official 150,000 RPM ÷ diameter ceiling for the E-Series line.
APC 13x4 Sport — built for glow and gas engines but usable on electric setups that want more diameter without excessive pitch; a common choice on larger trainers and sport-scale glow conversions.
Master Airscrew 8x4 Glass-Filled Nylon — the pick for park flyers and smaller sport models where crash survivability matters more than the last percent of efficiency. Flexes and survives ground strikes better than stiffer composite props of the same size.
Xoar PJWWII 20x8 Beechwood — a scale warbird prop for giant-scale gas builds, prized for low vibration, quiet running, and the throttle feel that only wood delivers at this size.
GWS EP8040 8x4 (5-pack) — the long-standing benchmark for 3D and lightweight foamies. Fast spool-up and light weight, though quality control on balance runs inconsistent enough that checking each prop before flying it is worth the extra minute.
AEORC Thin Electric props — budget-oriented alternatives positioned as APC replacements for sport flyers and trainers.
Frequently Asked Questions
Q: Does a bigger prop always mean more power?
Not exactly — a bigger diameter increases thrust because swept area grows faster than diameter, but it also increases the load on the motor. A larger prop only delivers more usable power if the motor and ESC have the headroom to turn it without exceeding their current limits.
Q: Can I just use whatever prop size the motor manufacturer recommends?
It's a reasonable starting point, but manufacturer recommendations are generic and don't account for a specific airframe's weight, drag, or flying style. Two airplanes with the same motor can want noticeably different props — treat the manufacturer number as a midpoint to test around, not a fixed answer.
Q: Why does my prop draw so much current on the bench but seem fine in the air?
Static thrust and current peak when the airplane is standing still because the prop is working against undisturbed air. Once the airplane is moving, the effective angle of attack on the blades drops and both thrust and current fall — bench numbers are a safety check, not a flight prediction.
Q: How do I know if a prop is too much for my ESC?
Run the setup at full throttle for 20–30 seconds with a wattmeter in line and read actual current draw. If it's above roughly 80% of the ESC's continuous amp rating, drop to a smaller pitch before touching diameter.
Q: Do I need a different prop material for 3D flying versus scale flying?
Generally yes. 3D and hover-heavy flying favors more flexible glass-filled nylon props that survive frequent ground strikes, while giant-scale and pattern flying favors stiffer wood or composite props for efficiency, quiet running, and authentic throttle response.
Q: What happens if I run a prop rated for glow engines on an electric motor?
It's not inherently unsafe, but standard combustion-rated props use a thicker airfoil tuned for lower RPM ranges than most electric motors run at, so efficiency suffers. An electric-specific (E-Series or equivalent) prop is almost always the better match for a brushless setup.
Conclusion
Propeller sizing rewards the pilot who thinks about the airframe first and the spec sheet second. Diameter builds thrust, pitch builds speed, and both raise the load on whatever motor and ESC are turning the blade — the formulas and RPM limits in this guide exist to keep that load inside safe territory, not to replace judgment about how a specific airplane actually flies. Materials add another layer on top: stiffer composite props deliver sharper throttle response at the cost of shattering on impact, while flexier nylon and wood props trade a little efficiency for survivability or scale authenticity.
The practical path is straightforward. Start from the airframe's category — trainer, park flyer, 3D, glider, giant-scale warbird — pick a prop size and material suited to that category, confirm current draw with a wattmeter before committing to full-throttle flight, and balance every new prop before it goes on the airplane. From there, small adjustments in pitch or diameter based on how the airplane actually behaves in the air will do more to dial in performance than any spec-sheet number ever will. Pair the right prop with a properly sized motor and a matched ESC, and the power system stops being a mystery and starts being a tool that does exactly what the airframe was built to do.
